OVERVIEW

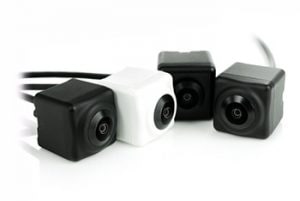

This camera is a side view camera, equipped with a CMOS Image sensor to support a high resolution and HDR Multi View function.
The camera is attached to the side mirror to provide the left and right view of the automobile, helping the driver when driving through a narrow road or parking the car.
The camaera marks the Guide Line around the automobile to help the drive and park the car more safely and easily.
To provide greater accuracy and convenience, the specially equipped HDR function of the camera can simultaneously correct the brightness in the dark or under a bright lighting, allowing the driver to see the image of the subject clearer.”
SPECIFICATION
| power supply | DC9.0V ~ DC15.6V |
|---|---|
| power consumption: | Max 2.1W at 12V |
| camera type: | 1/3″ CMOS image sensor |
| pixels: | 1,280(H) x 960(V), 1.2M pixel |
| lens (focal length): | f=1.27mm, F=1.8 |
| view angle: | Horizontal : 170º, Vertical : 110º FOV |
| horizontal resolution: | 330TV (center) |
| illumination range: | 1.0~100,000 Lx |
| video standard: | Composite Video NTSC |
| video output level: | 75Ω (1Vp-p) |
| IP rating: | IP68 |
| operating temperature range: | -30º~+70ºC |
| storage temperature range: | -40º~+85ºC |
| connection cable | 3m |
| weight: | 44g |
| dimensions: | 23.6 x 23.6 x22mm |
HDR
FEATURE
- Easy to monitor in dark or under strong lightings.
- Twice the High Dynamic Range of the previous model.
- when a strong lighting hits the camera in a dark place,
the screen increases the recognition rate from the excessive exposure state. - The High Dynamic Range technology function simultaneously corrects the brightness of the image.
- Controls the excessive exposure to make the whole screen easier to see.
1. High Light
2. Low Light
